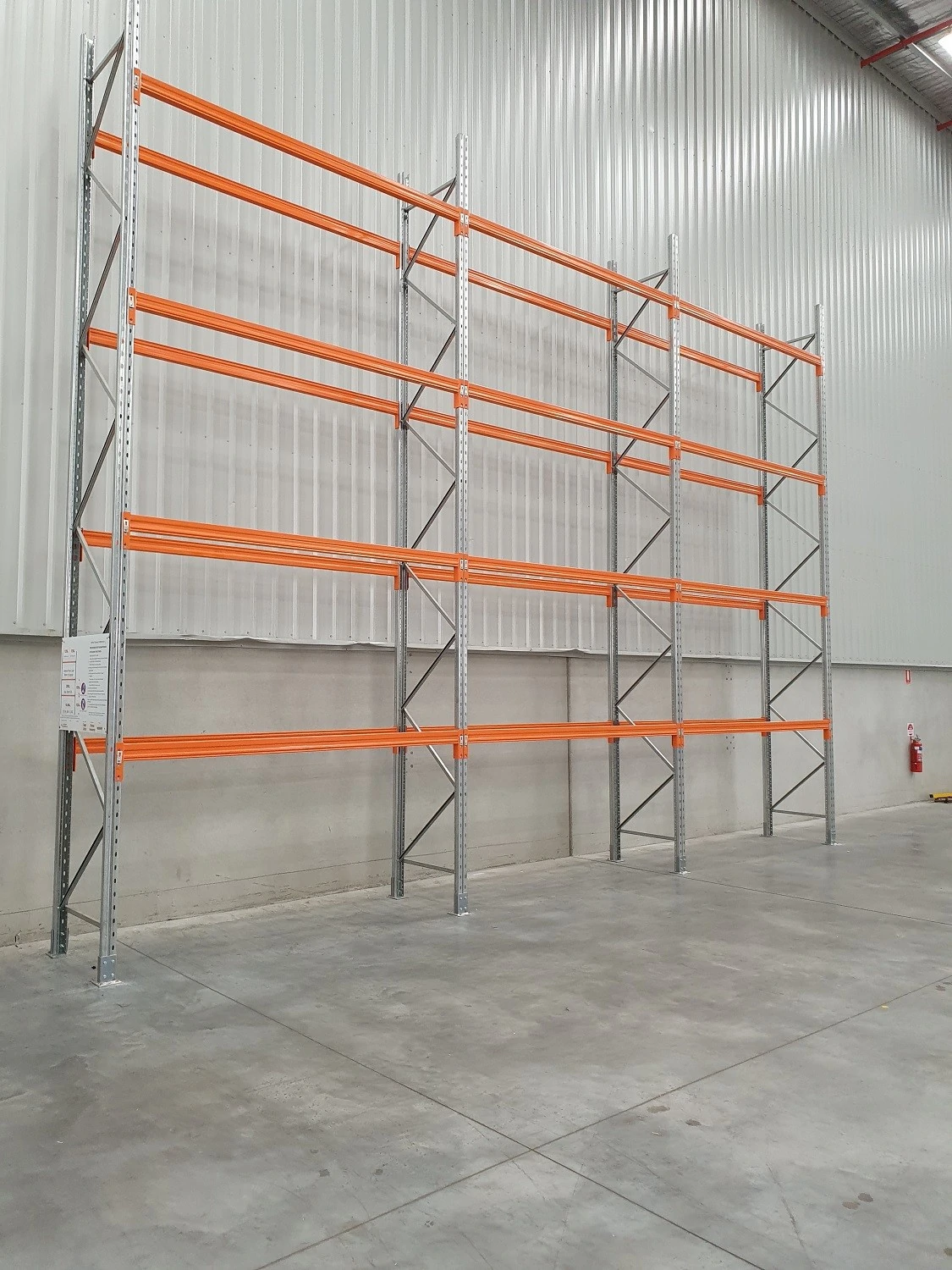

PALLET RACKING

we offer APEX selective pallet racking. It has been designed and engineered in Australia and complies with the latest Australian racking code AS 4084-2023 for steel storage racking.

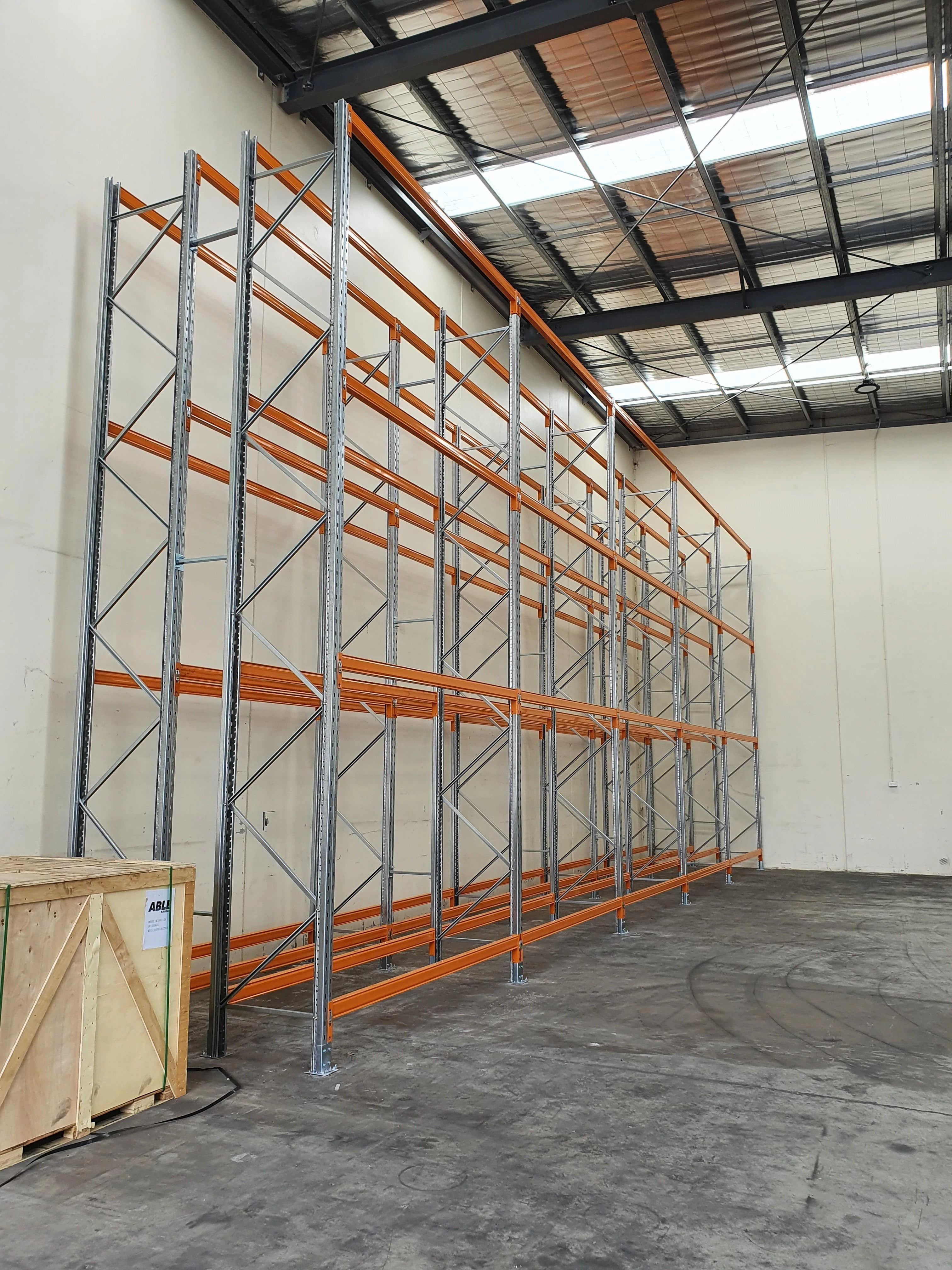

Selective pallet racking is the most common type of pallet racking used in Australia today. There are many other variations such as; drive-in racking, double deep, cable racking, vertical racking and carpet racking, all of which are constructed with APEX components.
Every warehouse and customer is different.  Whether your looking at upgrading your existing rack or relocating, Global is here to help you with your needs.

Pallet Racking Frames

Several frame grades (post sections) are available depending on the load capacity required.All posts and frames are a pre-galvanised finished, silver in colour.The standard frame heights available from our stock. Please note that special sizes can be made and ordered upon request

Frame Height                                                 	Frame Depth                                                                Apex Section914mm	                                                             610 / 838 / 1219mm	                                                90-151829mm	                                                     610 / 838 / 1219mm	                                                90-152438mm	                                                     610 / 838 / 1219mm	                                                90-153048mm	                                                     610 / 838 / 1219mm	                                                90-153658mm	                                                     610 / 838 / 1219mm	                                                90-154267mm	                                                     610 / 838 / 1219mm	                                                90-15 / 90-204877mm	                                                     610 / 838 / 1219mm	                                                90-15 / 90-206096mm	                                                     610 / 838 / 1219mm	                                                90-15 / 90-20 /90-257315mm	                                                     610 / 838 / 1219mm	                                                90-20 / 90-25

Pallet Racking Beams

APEX powder coated orange box and open beams are designed to withstand a higher level of impact and retain their shape better than some other types of beam sections on the market.
The below are our standard sizes available off the floor. Please note that special sizes can be made and ordered upon request.
 Beam Length	                                                                   Box Section	                                                     Connector1372mmL	                                                              80 x 40mm                                                                      3pin
2591mmL	                                                              100 x 50mm                                                                     3pin                                                                                      120 x 50mm                                                                     4pin
plus the below beams can be specially ordered in at your request
2743mmL	                                                              100 x 50mm                                                                    3pin                                                                                      120 x 50mm                                                                    4pin3048mmL                                                                   120 x 50mm	                                                                4pin3353mmL	                                                              120 x 50mm	                                                                4pin3658mmL	                                                              140 x 50mm	                                                                4pin3810mmL	                                                              140 x 50mm	                                                                4pin
